BM-21А “BelGrad” is designed for suppression and elimination of manpower, combat vehicles, armament and command posts located in high concentration areas or within strongholds as well as artillery, rocket and mortar batteries; for destruction of enemy enforcements, strongholds and defensive posts.

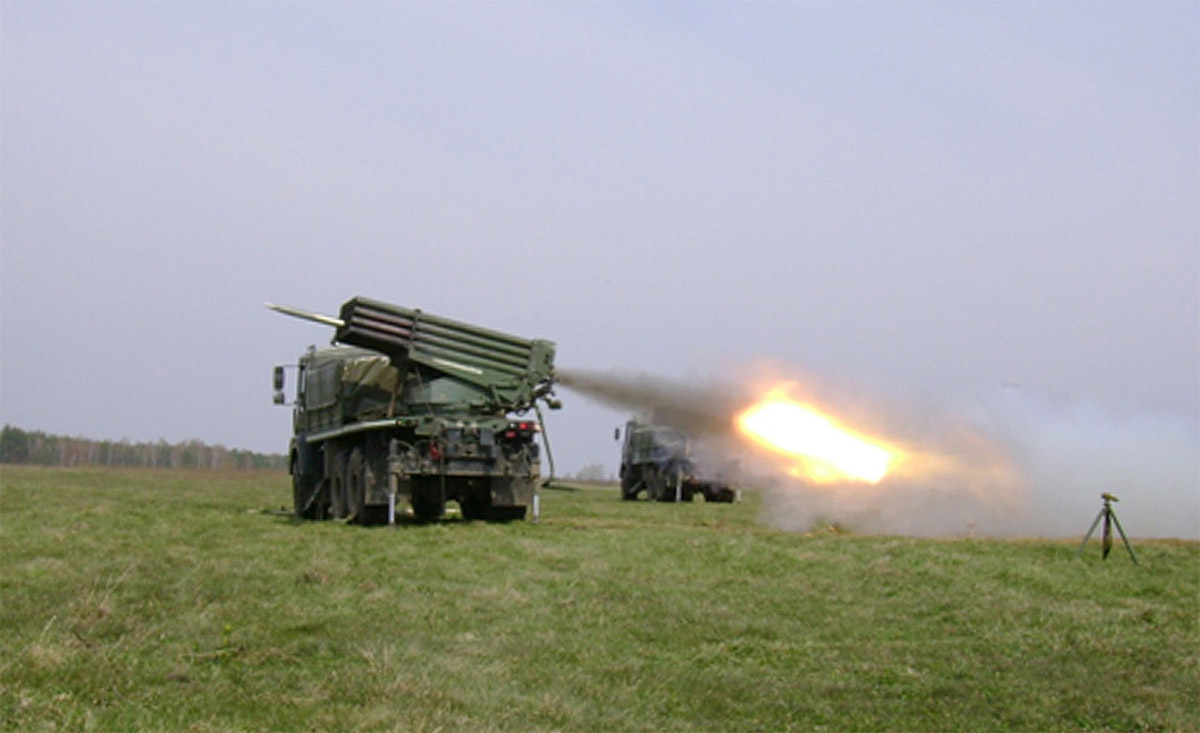

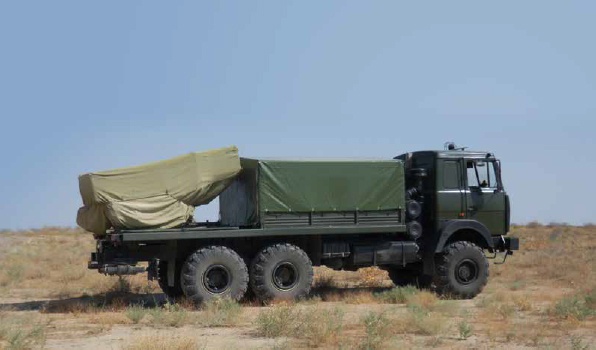

The combat vehicle is a self-propelled rocket launcher consisting of a turret and a vehicle chassis. Among peculiarities of the turret of the combat vehicle is its simple structure, reliable operation, high survivability, combat efficiency and low maintenance expenses. Specially designed 6x6 standard vehicle chassis MAZ-631705 is used to mount turret of MLRS BM-21A. It significantly enhances combat capabilities of the system when used in swampy, sandy, hilly and mountainous area.
The combat vehicle is equipped with a set of 9F37 (9F37М) racks intended to store 40 (60) rockets for BM-21A vehicle which allows to reduce the number of transloaders required, heighten maneuverability and reduce combat readine time.
The set of launching tubes installed on the combat vehicle can turn to the angle of 180°, which enables loading of launching tubes directly from rocket storage rack of the combat vehicle.
The combat vehicle is equipped with hydraulic jacks which enables leveling and stabilization of the turret when in combat position. It prevents swinging of the combat vehicle when firing salvos, significantly reduces dispersion of rockets and improves fire accuracy and grouping. Technical and ballistic fire conditions of MLRS BM-21A are identical to that of MLRS BM-21. 122 mm rockets are used for MLRS BM-21A, the same as for MLRS BM-21.
Technical specifications
Caliber, mm
|
122
|
Number of launching tubes
|
40
|
Firing range, m:
|
| - ordinary projectile |
20450
|
| - projectile of extended range |
up to 50000
|
Full salvo time, s
|
20
|
Maximum elevation angle, deg
|
55
|
Minimum elevation angle, deg
|
0
|
Traverse, deg:
|
| - RH from the vehicle’s chassis |
70
|
- LH from the vehicle’s chassis
|
102
|
| Cabin bypass angle, deg |
±36
|
Minimum elevation angle of launching tubes in the cabin zone, deg
|
20
|
Length in travel position, mm
|
9450
|
Width in travel position, mm
|
2710
|
Height in travel position, mm
|
3410
|
Height at the maximum elevation angle, mm
|
4530
|
Carried ammunition set, pcs
|
80 (100)
|
Combat vehicle reloading time, min
|
7
|
Weight of combat vehicle without ammunition and crew, kg
|
13300
|
Curb weight, kg:
|
- with 40 rockets in launching set
|
16340
|
- with 40 rockets in launching set and 40 rockets on the racks
|
18980
|
- with 40 rockets in launching set and 60 rockets on the racks
|
20300
|
Maximum travelling speed of the combat vehicle at curb weight, km/h
|
up to 75
|
| Fuel distance, km |
1000
|
Maximum fording depth, mm
|
1750
|
