“Ovod” is a portable anti-tank system developed to destroy tanks, armored and non-armored transport vehicles, enemy troops in open areas, trenches, temporal field shelters or brick fortifications as well as enemy non-armored vehicles and infantry when direct firing at embrasure field fortifications within urban area for total destruction of enemy transport vehicles, equipment and manpower mainly located in field shelters, combat fortifications, stone, brick and concrete constructions by air shock wave as well as by thermal emission.

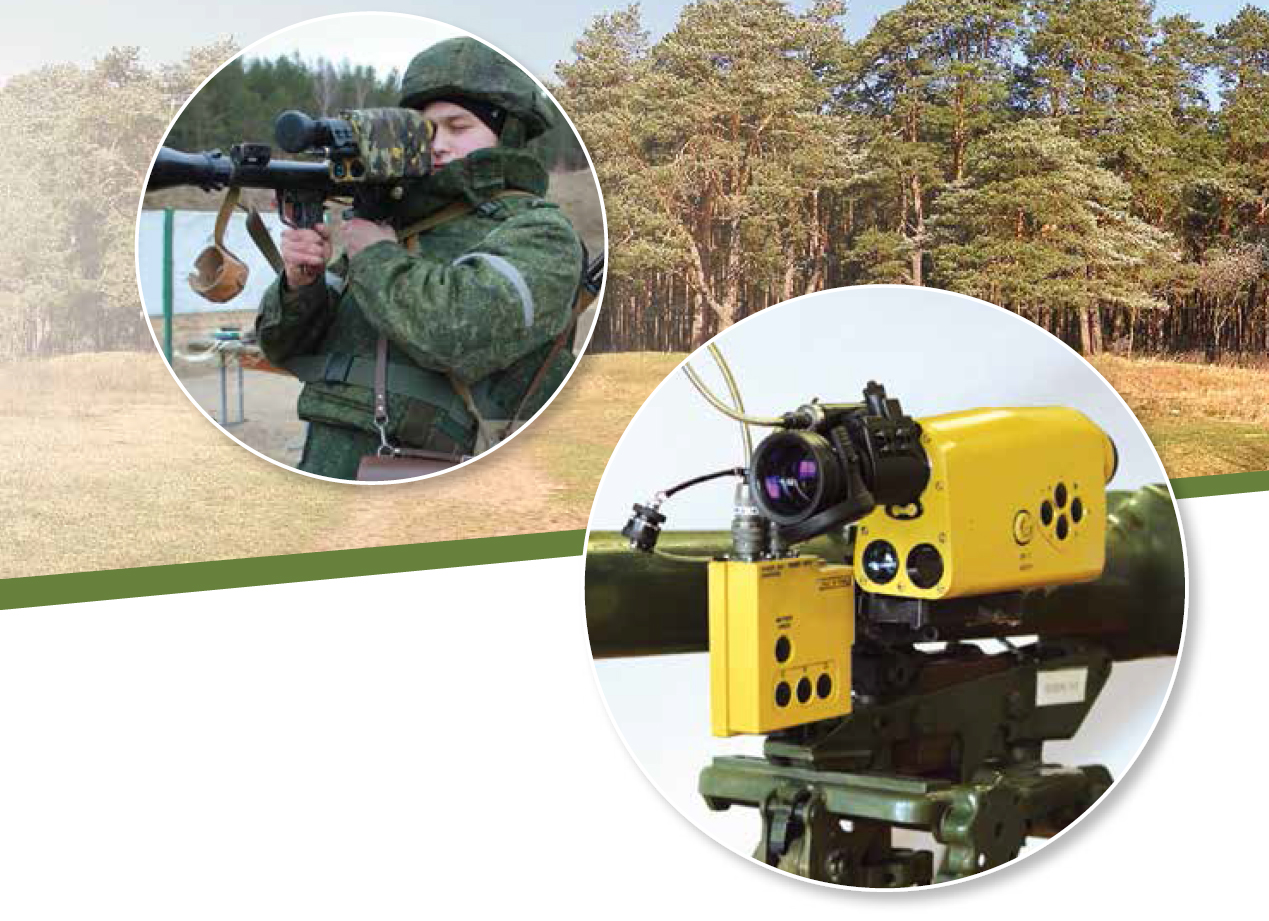

“Ovod” is a system based on RPG-7 (“Ovod-R”) and SPG-9 (“Ovod-S”) grenade launchers, upgraded by installation of high-precision smart sight with night vision attachment (optionally) and modern power supply system based on lithium-ion batteries. Standard sights for RPG-7 and SPG-9 grenade launchers – PGO and collimator sight for RPG-7 – PGK are also included into delivery set.
Technical specifications
Caliber, mm
|
40
|
Ammunitions
|
hollow charge RHEAT-7M1
|
Any standard RPG-7 round compatible with “Ovod-R” including enhanced ones mentioned in the table
|
high-explosive fragmentation RHEF-7MA, fragmentation RF-7MA, thermobaric RTB-7MA, round RF-7MA INERT
|
Length, mm
|
950
|
Weight without sight, kg
|
6,3
|
Fire rate, rpm
|
4...6
|
Portable ammunition set, rounds
|
5
|
MTBF of grenade launcher, rounds
|
500
|
Options
|
adjustable bipod
|
Bi-/tri-pod weight, kg
|
1,3
|
Elevation angle, deg
|
30
|
Combat application angle:
|
- ambient temperature
|
from –40 to +60
|
- atmospheric pressure
|
60kPa (450 mm Hg)
|
- humidity
|
not more than 95%
|
Composition of the system
|
rounds of different types, grenade launcher, sight, individual SPTA set, package
|
