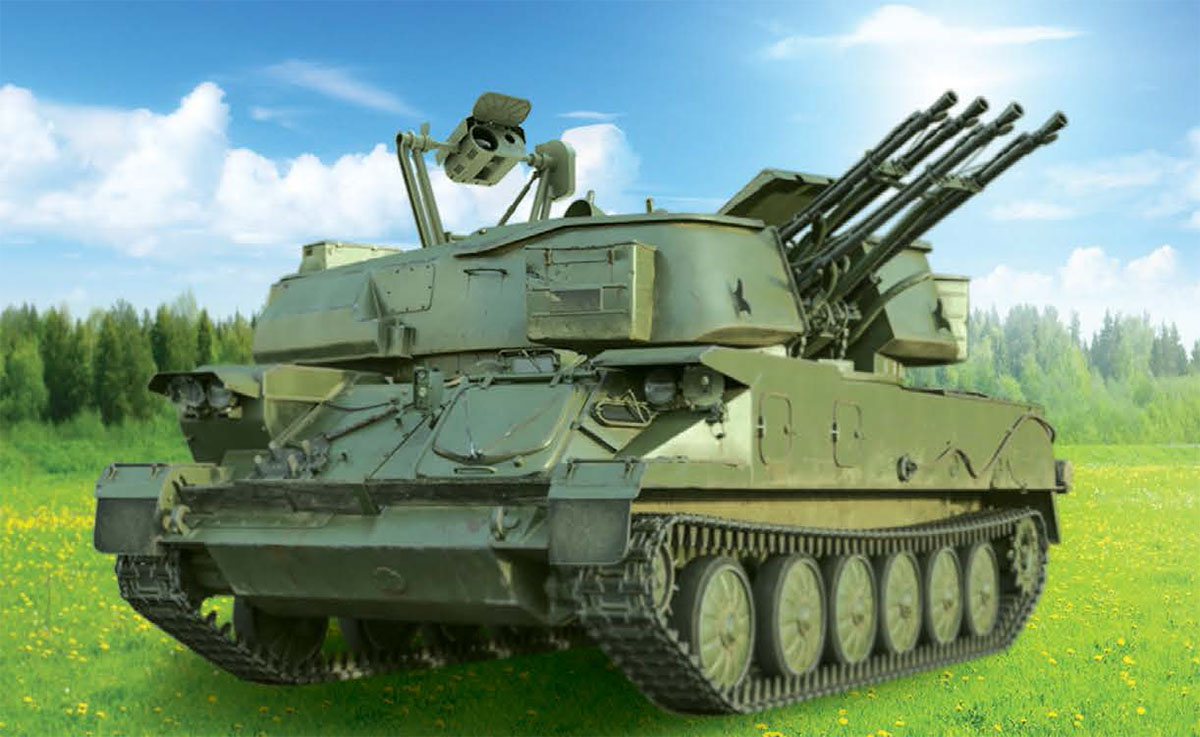

ZSU-23-4BM “Shilka” upgraded self-propelled air defense gun is intended to destruct low flying airborne targets – including UAVs – flying at distance of up to 2500 m and altitude of up to 1500 m with the speed of up to 450 m/s.

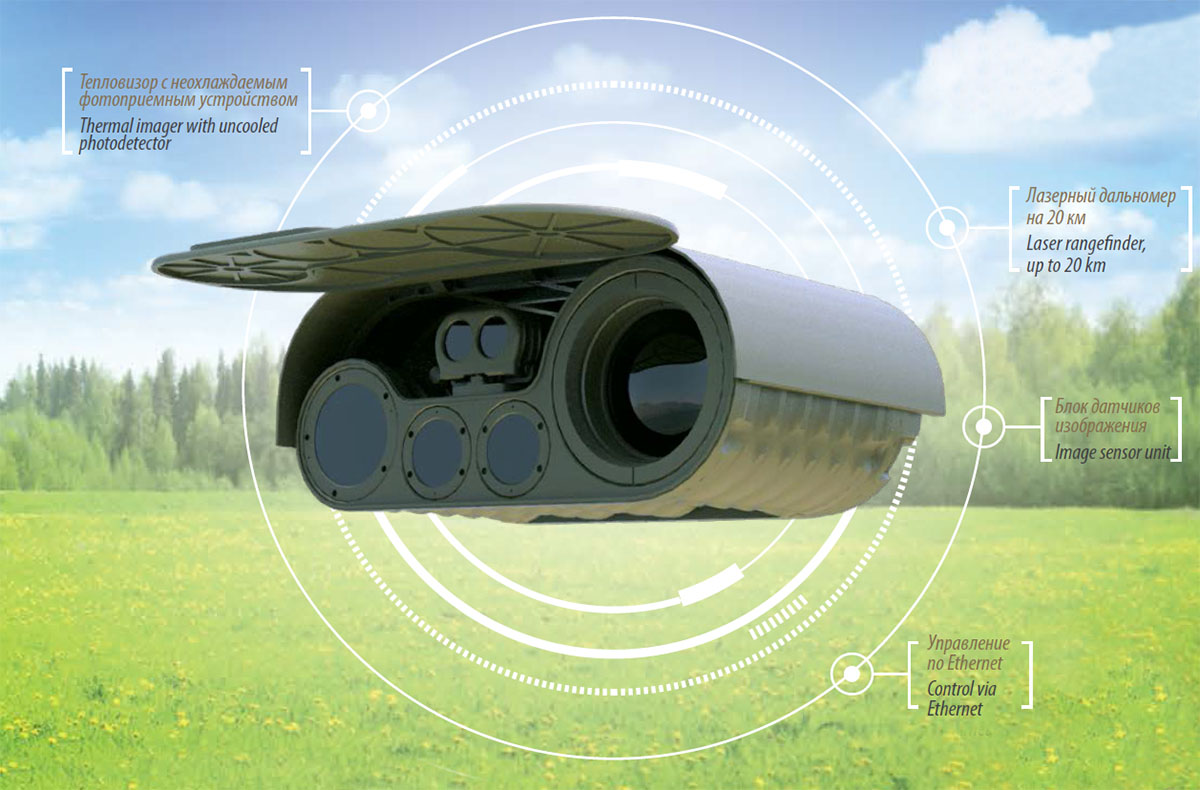

Upgrage of self-propelled air defense gun involves installation of modern optronic system “Strizh-М2” with the following capabilities:
• Search, lock-on and automatic tracking of a target based on target designation data received from a superior command post;
• Autonomous search, detection and tracking of airborne and ground-based (water-based) targets in passive mode based on target designation data received from AWS of combat vehicle commander;
• Search for a target within a preset sector or in all-round mode;
• Possibility to perform passive evaluation of distance to a tracked target using neural network technologies;
• Visualization of situation and service data.
Technical specifications
|
TV channel
|
Thermal imaging channel
|
Range of day-and-night detection of targets, km:
|
|
|
• tactical fighter flying at 1000 m altitude, not less than
|
12 |
10 |
• UAV, not less than
|
4 |
4 |
Spectral range, μm
|
0,4 – 0,9
|
8 -12
|
Angular dimensions of wide field of view, deg
|
9,0x12,0
|
9,0x12,0
|
Angular dimensions of narrow field of view, deg
|
3,0x4,0
|
3,0x4,0
|
Power supply voltage
|
~220 V, 400 Hz and +24 V
|
Memory capacity provides
|
logging of data for 8 hours
|
| Operation temperature range, °C |
from -40 to +50
|
