Technical specifications
COMBAT AND MANEUVERING CAPABILITIES
| Maximal range of detection of enemy’s engagement objects, applying UAV (from GCP), km
|
300
|
| Maximal error of target coordinates detection, applying UAS, m
|
30
|
| Maximal distance of missiles launch, km
|
300
|
| Readiness time for engagement of targets from unprepared launch position, min
|
up to 8
|
| Area of engaging targets by one combat vehicle firing at the maximal range without aiming angle adjustment, km2
|
up to 400
|
| Units salvo total time, min
|
up to 1
|
| Firing accuracy, m:
|
|
| -with HEF and HE warhead
|
30
|
| - with FAPC (fragmentation-AP-cluster) warhead
|
45
|
| Launch position leaving time, min
|
up to 2
|
| Time required for loading of missiles on combat vehicle, min
|
up to 20
|
| Maximal travelling speed, km/h
|
70
|

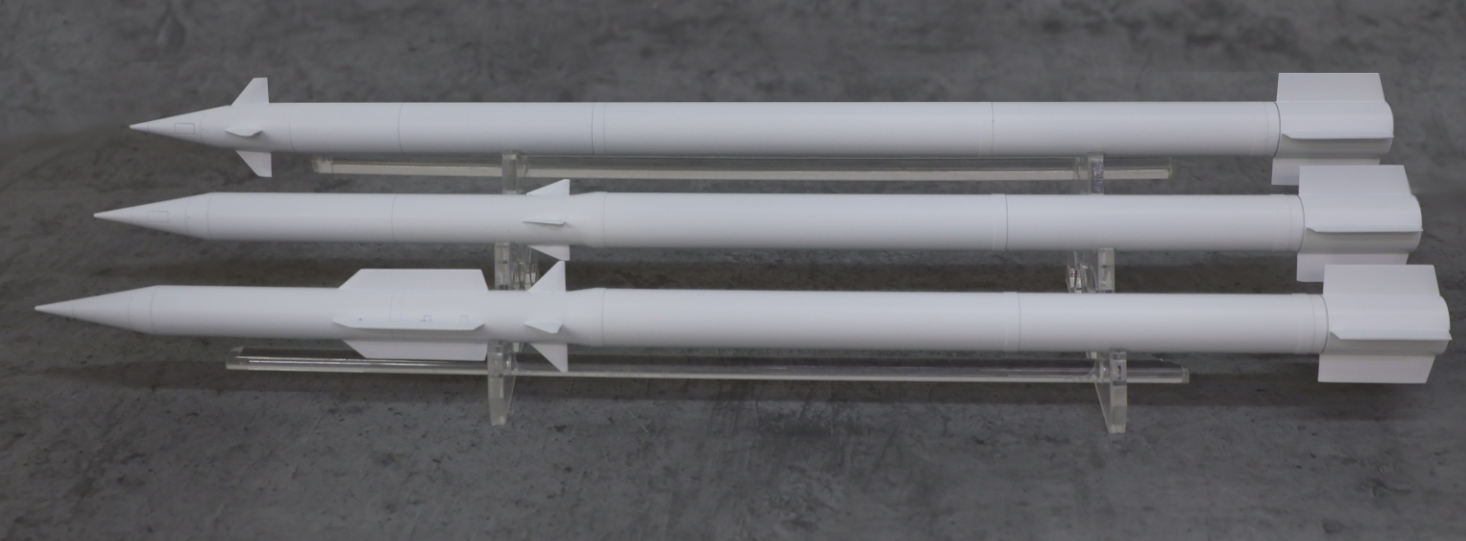

MISSILES SPECIFICATIONS
| Length, mm
|
7496
|
| Diameter, mm
|
301
|
| Fire range, km
|
120 – 300
|
| Warhead weight, kg
|
140
|
| Warehead
|
HEF, HE, FAPC
|
