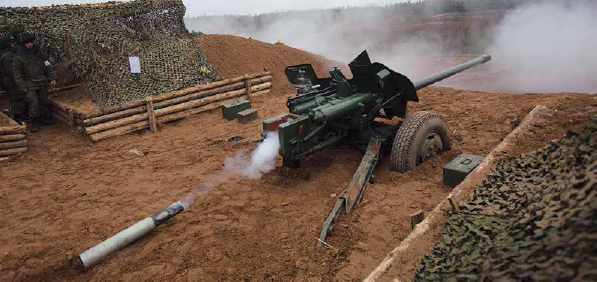

100 mm anti–tank gun МТ–12 “RAPIRA”

100 mm anti-tank gun MT-12 (T-12) “Rapira” is intended to hit armored targets as well as manpower and enemy fire weapons. High muzzle velocity of a projectile and long range of a direct shot makes it possible to destroy enemy armored equipment with high probability.

Аnti-tank guided missiles, hollow charge, sub-caliber and high-explosive fragmentation ammunitions are used for firing which makes the gun multipurpose and allows to hit armored targets, manpower and enemy fire weapons both by direct firing and from covered fire positions.

Artillery sights are installed on MT-12 gun:
• For direct firing in the daytime (at visible target) – OP4MU-40U optical sight;
• For firing from closed positions (at invisible target) – S71-40 mechanical sight with PG-1M panoramic sight and K-1 collimator;
• For night firing – APN-6-40 night sight (1PN35).

Anti–tank rounds with guided missiles
100 mm rounds 3UBK-10 (anti-tank guided missile 9М117) with anti-tank guided missile are intended to fire at tanks, self-propelled artillery guns and other armored targets having composite, distributed and one-piece armor including explosive reactive armor (ERA) as well as to fire at fortifications and engineering constructions.

Ammunitions used for 100 mm gun МТ-12 (Т-12)
Armor-piercing sub-caliber projectiles
100 mm rounds UBM1 and UBM2 with armor-piercing sub-caliber projectiles ZBM1 (with core) and ZBM2 (without core) are intended for firing at tanks, self-propelled guns, other armored targets as well as fortifications and engineering structures.

Hollow charge projectiles
100 mm rounds UBK2 and UBK2M with hollow charge fragmentation projectiles 3BK3 and 3BK3M equipped with GPV-2 fuse are designed for direct firing at armored targets with strong armor protection, at light shelters and manpower.

High-explosive fragmentation projectiles
100 mm round UOF3 with high-explosive fragmentation projectile 3OF15, equipped with V-429E fuse is designed for firing at manpower, firing points, field-type engineering structures and other targets.

Technical specifications

Anti–tank rounds with guided missiles

Firing range, m	100 – 4000
Missile flight speed, m/s	370
Missile initial flight speed, m/s	400 – 500
Time of flight at maximum range, s	13
Weight of missile 9М117, kg	17,6
Armor piercing capability behind ERA, mm	550 – 600
Possibility to engage tank-type target at maximum range	0,8

Armor-piercing sub-caliber projectiles

Direct shot range, m	2200
Muzzle velocity, m/s	up to 2120
Round weight, kg	19,9
Projectile weight, kg	4,55

Hollow charge projectiles

Direct shot range, m	1150
Muzzle velocity, m/s	up to 1075
Round weight, kg	23,1
Projectile weigh, kg	9,5

High-explosive fragmentation projectiles

Maximum firing range, m	12860
Direct shot range, m	860
Muzzle velocity, m/s	up to 700
Round weight, kg	28,9
Projectile weight, kg	16,7

	Т-12 (2А19)	МТ-12 (2А29)
Caliber, mm	100
Charging section length, mm	915
Length in combat position, mm	9480	9650
Width in combat position, mm	1800	2320
Gun height about upper cut of shield, mm	1510	1600
Weight in combat position, mm	2700	3100
Barrel length, mm/caliber	6126 (61caliber)	6300 (63 caliber)
Traverse angle, deg	54 (±27)
Elevation angle, deg	–6 ÷ +20
Fire line height, mm	810
Firing rate, rds/min	6 – 14
Standard recoil length, mm	680 – 770
Maximum recoil length, mm	780
Speed by road, km/h	up to 60
Maximum range using high-explosive fragmentation projectile, m	12700
Maximum range of direct shot, m:
- armor-piercing sub-caliber	up to 2200
- hollow charge	1020 – 1150
- high-explosive fragmentation	860
- anti-tank guided missile	4000
Track width, mm	1480	2120
Gun width by wheel guards, mm	1900	2320
Wheel diameter, mm	980	1034
Clearance, mm	305	330
Ammunition set, pcs	20
Consisting of, %:
- AP sub-caliber projectiles	50% – 10 pcs
-hollow charge projectiles	30% – 6 pcs
- HEF projectiles	20% – 4 pcs
Crew, person	6 – 7
Transport vehicles	tracked tractor MT-L (МТ-LB), vehicle by MAZ, KAMAZ, Ural
