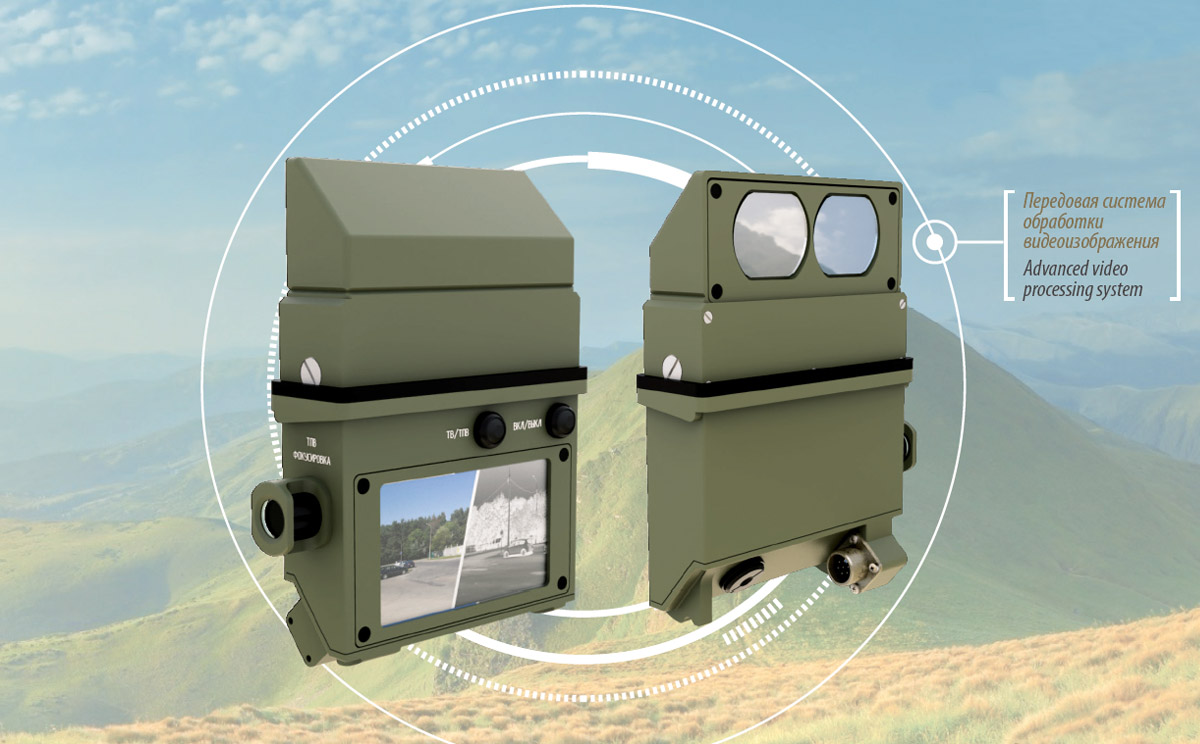

“PUMA DRIVER–170A” combined day/night driver’s device

It is designed to perform day-and-night observation when driving a combat vehicle. It replaces standard replaceable devices – TNPO-160, TNPO-170A, TVNE-1PA, TVN-5, TVK-1.

Technical specifications

Channel
Television
Thermal
Type of receiver, μm
CMOS NIR-enhanced
uncooled microbolometer 17
Spectral receiver, μm
0.4-0.9
8-14
Receiver resolution
1280x720
640х480
Lens
F1.0/4.2
F1.05/11
Field of view
52°х33°
Frame rate, Hz
30
Control
Ethernet
Battery/Power, V
22-32
Power consumption, W
6
Operation temperature range, °С
-40...+50
Micro display
LCD 800x480
Gas filling
nitrogen
