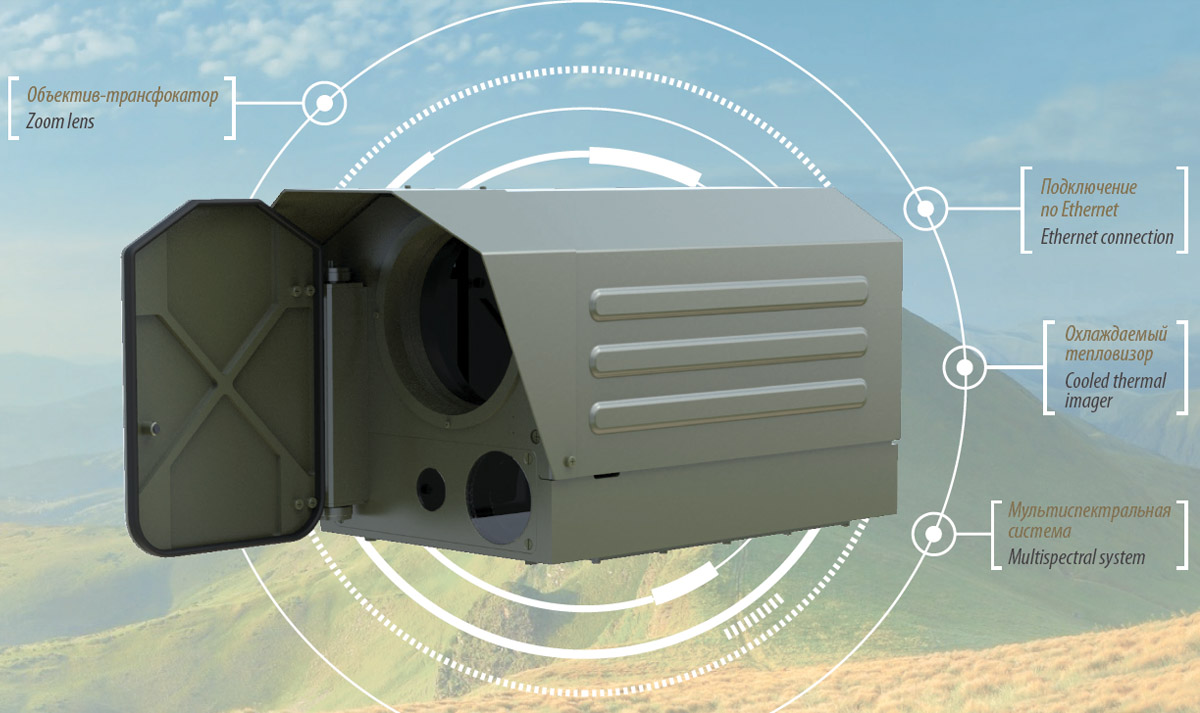

“HAIDAR” thermal and television viewfinder

The device contains cooled thermal imaging module that ensures detection of airborne targets at long distances. It can be used as an optronic channel in reconnaissance stations of border control systems.

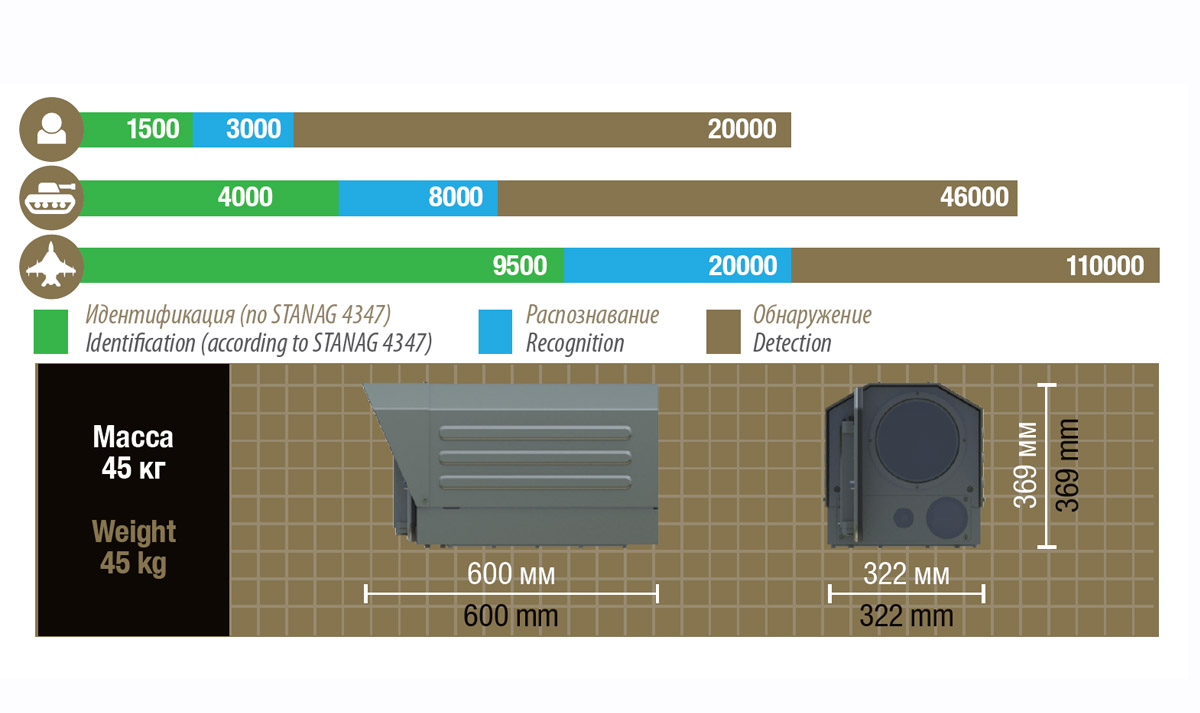

Tactical and technical characteristics

Channel
Television
Thermal
Type of receiver, μm
CCD
HgCdTe/MCT
Spectral sensitivity, μm
0.4-0.9
3-5
Receiver resolution
2330x1780
320х240
Objective, narrow field
- F4.0/600
Objective, middle field
F2.5/190
F4.0/150
Objective, wide field
F1.4/30
F4.0/22
Narrow field of view
0.9°x0.68°
Middle field of view
4°x3°
Wide field of view
24°x18°
Image transfer
Ethernet
Frame rate, Hz
30
Battery/Power, V
19-32
Power consumption, W
320
Operation temperature range, °С
-30...+55
