Radar reconnaissance means Unified air defense system Anti-aircraft missile weapons Automated control systems Radio electronic warfare and reconnaissance means Communication means Metrological systems Automated means for diagnostics and repair of radio electronic devices“Sapsan-GK” Mobile Complex for Countering Small Unmanned Aerial Vehicles
It is designed for comprehensive protection of important areal stationary and mobile single point-type objects or a group of point-type objects remote at a short distance one from another from small unmanned aerial vehicles (hereinafter – drones).
Tasks to solve:
- search, detection, recognition and tracking of small unmanned aerial vehicles (drones) with radar, ELINT and optronic reconnaissance means;
- RF jamming of control channels and satellite navigation (GNSS GPS, GLONASS, Galileo/ BeiDou) of drones;
- hard kill of drones and ground objects with weapons of different types;
- hard kill of ground control stations of the enemy’s drone operators.
The Composition of “Sapsan-GK” Complex:
- control and EW module;
- up to 4 units of reconnaissance and firing modules with weapons for different types of 7,62 mm PKT machine-guns (2 (4 units) or 12,7 mm NSVT machine-guns (1-2 units) or LMGK-60 Grenade Launchers (12 units).
As an auxiliary mobile firing module of attacking ground objects, the complex can be equipped with special-purpose combat unmanned aerial system “Assistant” (up to 4 units of LMGK-60 Grenade Launchers).

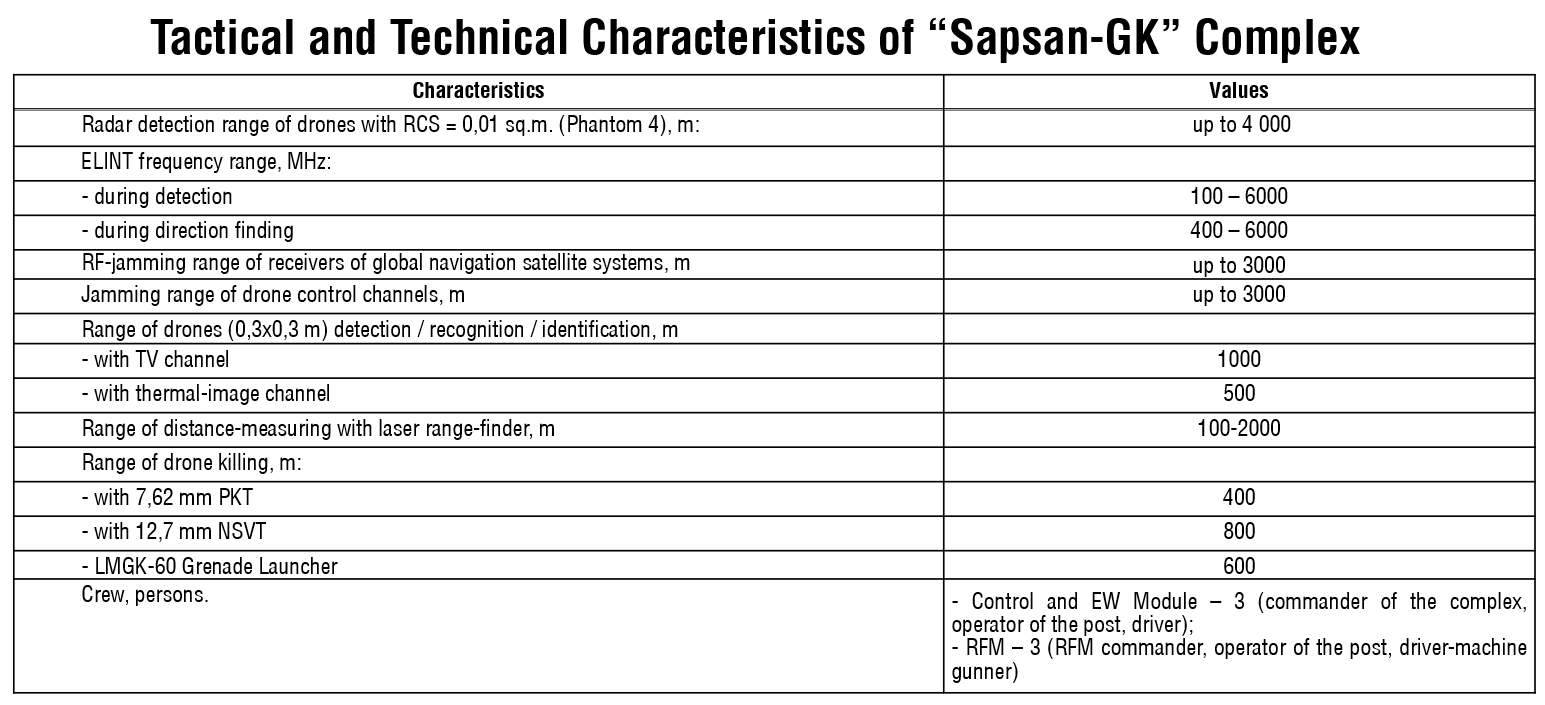

Tactical and Technical Characteristics of “Sapsan-GK” Complex
|
Radar detection range of drones with RCS = 0,01 sq.m. (Phantom 4), m: |
up to 4 000 |
|
ELINT frequency range, MHz: |
|
|
- during detection |
100 – 6000 |
|
- during direction finding |
400 – 6000 |
|
RF-jamming range of receivers of global navigation satellite systems, m |
up to 3000 |
|
Jamming range of drone control channels, m |
up to 3000 |
|
Range of drones (0,3х0,3 m) detection / recognition / identification, m |
|
|
- with TV channel |
1000 |
|
- with thermal-image channel |
500 |
|
Range of distance-measuring with laser range-finder, m |
100-2000 |
|
Range of drone killing, m: |
|
|
- with 7,62 mm PKT |
400 |
|
- with 12,7 mm NSVT |
800 |
|
- LMGK-60 Grenade Launcher |
600 |
|
Crew, persons |
- Control and EW Module – 3 (commander of the complex, operator of the post, driver); - RFM – 3 (RFM commander, operator of the post, driver-machine gunner) |
