Technical specifications
|
|
Thermal channel (day/night)
|
Television channel (day/night)
|
| Optical angular magnification, x
|
1 | 1 |
| Angular field of view, deg
|
40х30
|
33х25
|
| Photo receiver
|
640х480х0.017
|
1/4 “ (1280х800)
|
| Spectral range, μm
|
7.5…14
|
0.4…0.9
|
| Gas filling
|
nitrogen
|
|
| Body-shaped target detection range, m
|
300…350
|
|
| Display
|
5 ‘’ (800х480)
|
|

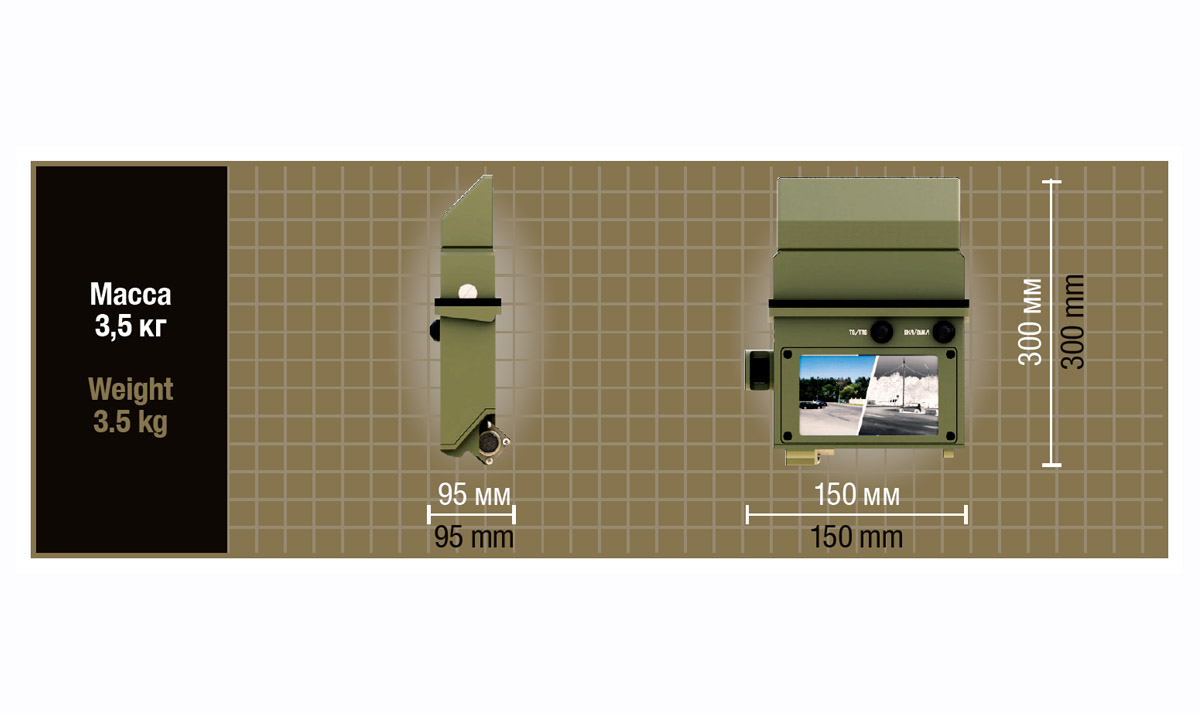

| Dimensions, mm
|
same as TVNE-4B without change in mounting dimensions
|
|
| Power supply, V
|
22…32
|
|
| Weight, maximum, kg
|
3.5 | |
| Operation temperature range, °С
|
-40…+50
|
|
