UAV ground-based control station

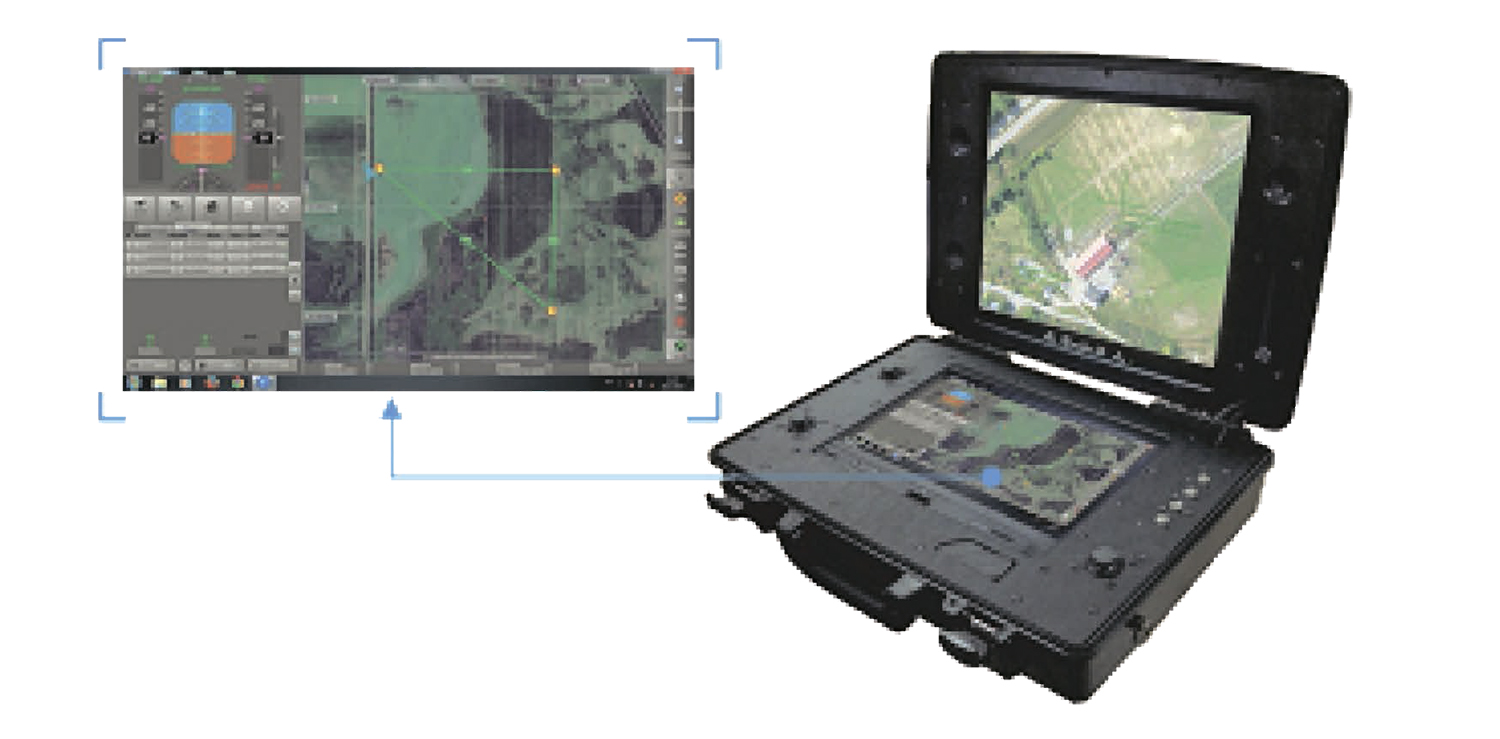

Ground-based control station (GBCS) is a shock-proof sealed case with computer, two monitors for displaying operational information and video data, UAV and payload controls.


• Operation time using self-contained power supply is not less than 3 hours.
• GBCS dimensions when folded - 50x35x12 cm.
• GBCS weight - 9.5 kg.


UAV GBCS includes:
• Shock-proof sealed case with computer, two monitors, controls;
• Telemetric data transceiving and video signal receiving equipment;
• Antenna mast system (optionally);
• Self-contained power supply equipment;
• Cable feed system.

Designation:
• Preparation of flight task, its remote input in UAV navigation system and storage to GBCS PC hard drive data base;
• UAV flight control in automatic mode following preset flight task with capability of its real-time correction (main mode);
• Displaying main operation modes, and navigation information on GBCS screens;
• Displaying, processing and recording video data transmitted from UAV;
• Target lock-on and tracking, definition of target coordinates, automatic target pursuing;
• UAV flight direct control using GBCS controls (standby mode);
• Storage of video data from payload to GBCS PC hard drive;
• Read out of UAV equipment operation and operator actions’ records, recording and archiving flight parameters.
