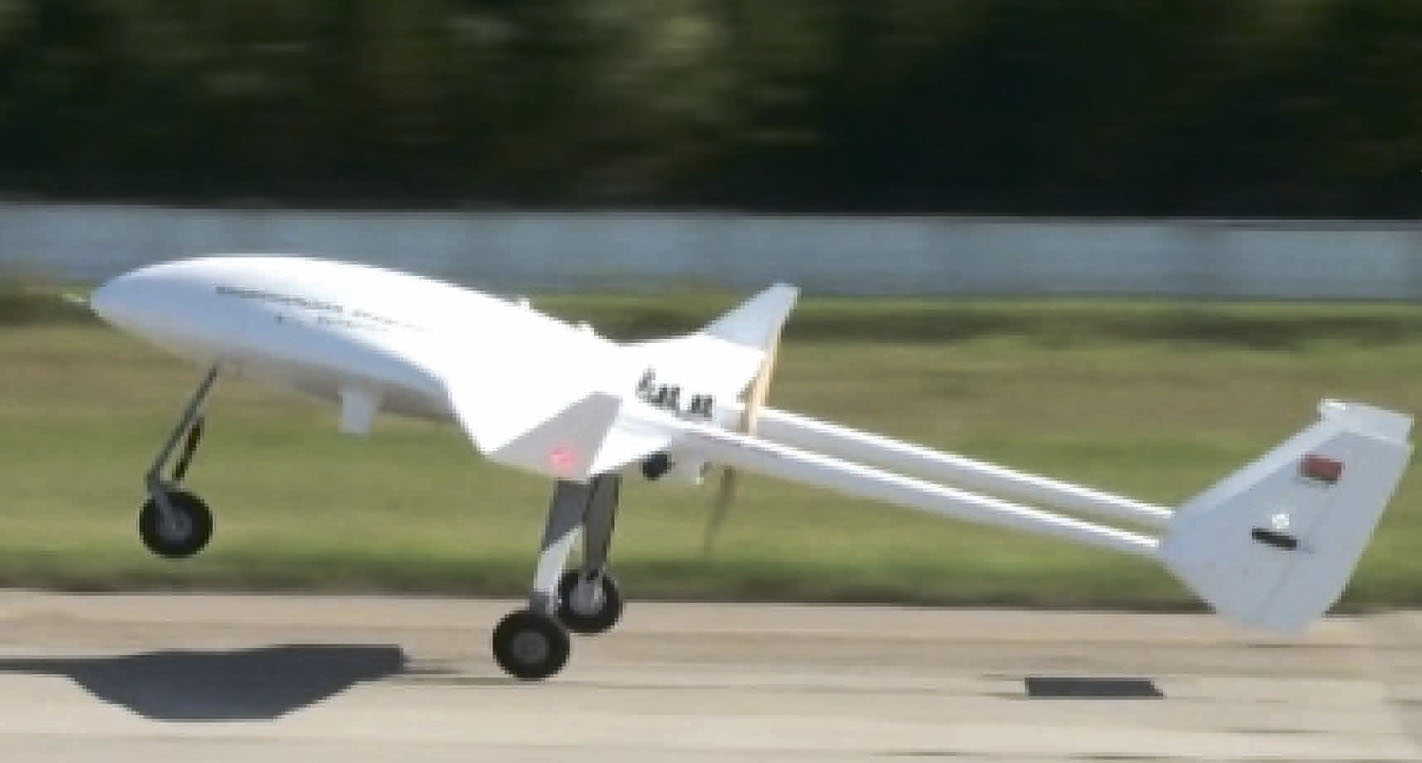

Long-range unmanned aircraft system “BUREVESTNIK” for terrain and objects monitoring

UAS “Burevestnik” is used for operating supervision of extended terrain areas and objects, moving objects tracking and also provided with data on-line transmission station which allows transmitting live video feed from UAV on the GCS and to other remote users, target designation.

Capabilities:
Depending on payload (TV-, photo and IR-cameras, aerial radiation monitoring equipment) UAS “Burevestnik” with flight range up to 290 km can be used: for the trailing; emergency situations detection and its assessment of development; oil- and-gas pipelines condition monitoring; anti-poaching; state frontier control; agricultural lands monitoring; radiation monitoring, etc., in daylight and nightlight hours.

System contents:
• UAV (up to 5);

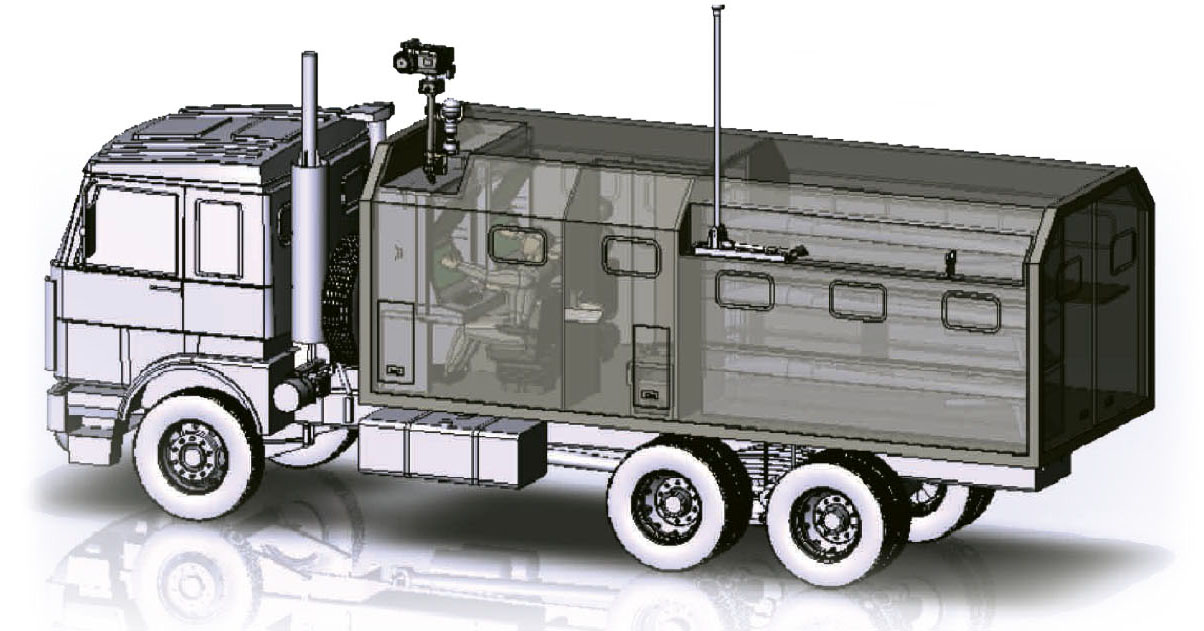

• Stationary or mobile GCS;
• Module of transmitting-receiving equipment (up to 2 sets);
• Set of payload (modules of optoelectronic and radiation monitoring, etc.);
• Ground support facilities.

Technical specifications

Power unit
ICE
Flight range, km
up to 290
Altitude, km
0.2 - 5
Speed, km/h
80 - 120
Endurance, h
8 - 10
Take-off/landing
running
Operation crew, man
3 - 5
Take-off mass, kg
180 - 240
